PROFESSIONAL GRADE GRAPHITE INSULATION

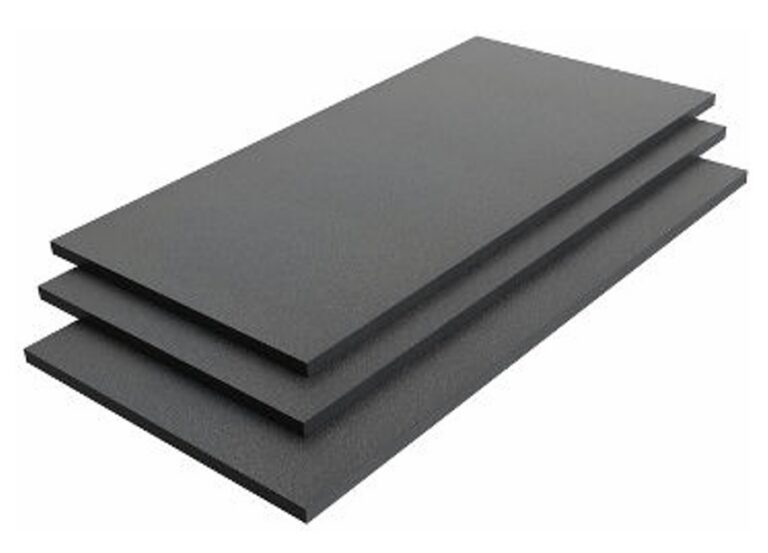

CHROME GPS® Professional Grade Graphite Insulation
Introducing Chrome GPS™ — a premium, professional grade rigid insulation that delivers higher long-term R-value and more value for the money than regular XPS insulation!
High-performance Chrome GPS™ is powered by graphite enhanced polystyrene (GPS). Distinguished by its distinctive silver/gray color, GPS is comprised of many small pockets of air within a polymer matrix containing graphite. The graphite reflects radiant heat energy like a mirror and increases the resistance to the flow of heat (R-value) by up to 20% when compared to conventional EPS.
CHROME GPS™ IS PROFESSIONAL GRADE
- Delivers R-5 per nominal inch* in both low and medium density applications. Its higher R-value means a thinner profile, which also means lower freight and installation costs.
- Eliminates thermal bridging and also powers up when it gets colder, delivering even more R-value.
- Resistant to aging and decay, delivering outstanding long-term thermal performance with virtually no loss of R-value over time. It also offers excellent resistance to normal soil moisture.
- Breathable and semi-permeable, helping reduce the risk of mold, rot and structural damage often associated with condensation and long-term moisture retention. It is also GREENGUARD® Certified for superior indoor air quality.
- Uses up to 30% less foam than many other insulation products, reducing the overall carbon footprint while contributing toward LEED® certification.

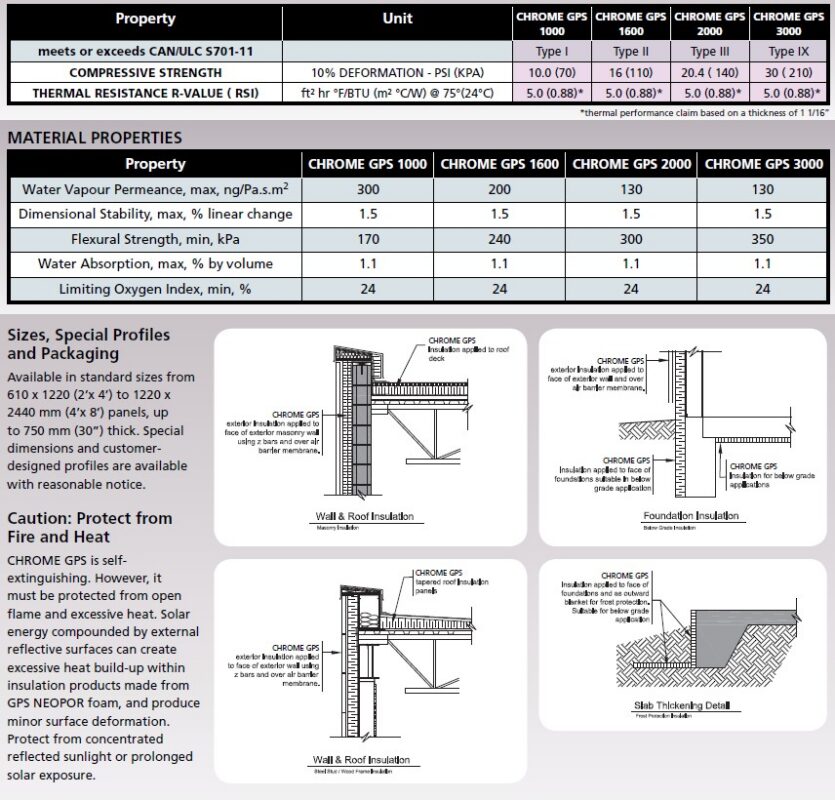

CHROME GPS SERIES TECHNICAL PROPERTIES
Introducing the newest R-5 insulation technology with Neopor® Plus.
Neopor Plus is a construction grade, graphite enhanced polystyrene (GPS) rigid foam insulation. This next-generation product builds upon the Neopor brand, and delivers the highest R-value performance with no LTTR loss. Neopor GPS is comprised of many small pockets of air within a polymer matrix containing graphite. The graphite reflects radiant heat energy like a mirror, increasing the material’s resistance to the flow of heat, or R-value.
CHROME GPS is S.M.A.R.T. Insulation:
PRODUCTS
Chrome GPS products are an "Equivalent" to competitive XPS products found in the market.
Chrome GPS® Product Range
Kanata Eco Builds offers a complete range of Chrome GPS® graphite insulation boards designed to meet the performance requirements of residential, commercial, and below-grade construction. Whether you're insulating a home, a commercial building, or a foundation, there's a Chrome GPS solution engineered to deliver exceptional thermal efficiency, durability, and long-term value.
| Chrome GPS® Product | Recommended Applications |
|---|---|
| Chrome GPS® 1000 | Exterior wall insulation |
| Chrome GPS® 1600 | Exterior walls, precast concrete, below-grade insulation |
| Chrome GPS® 2000 | Exterior walls, precast concrete applications |
| Chrome GPS® 2500 | Commercial exterior insulation, below-grade applications |
| Chrome GPS® 3000 | Heavy-duty commercial exterior insulation and below-grade construction |
Planning a project with Chrome GPS?
Contact Kanata Eco Builds’s sales team for product specifications, application guidance, and project support.
